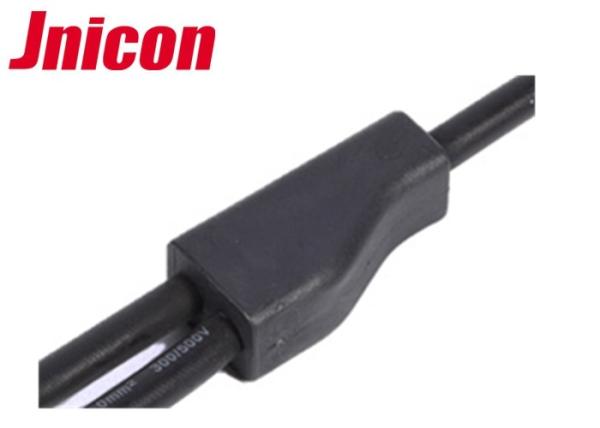

Mini Y Type Waterproof Cable Connector , Street Light Landscape Light Connector

Feature of Mini Y Type Waterproof Cable Connector

1. For size , mini Y waterproof cable connector is smaller the universal Y connector whether it 's volume , length or weight .
2. Cable OD : max φ 10.5 mm
3. There are 1 in 2 out , 1 in 3 out , 1 in 4 out etc .
4. Application : usually apply in street light , interior design , power grid system , garden light etc
5. Connect with different current range connector .
6. Protection leve : IP67 / IP68 , can be applied in outdoor , cold and hot environment ,even wet environment .
7. Method of connecting with cable : solder

Datasheet of Splitter Connector as below

Choosing Tips :

If you want to buy this waterproof cable connector , please do as following :

△ Step 1 : confirm the quantity of mini Y connector , there are 1 in 2 out , 1 in 3 out , 1 in 4 out etc . You can choose the suitable one according to your side .

△ Step 2 : confirm the male and female connector . Due to safety concerns , usually power pass in by male connector , put out via female connector .

△ Step 3 : confirm the current and voltage

△ Step 4 : confirm the mini Y connector in parallel or in series . In general , people use the connector in parallel .

△ Step 5 : confirm the length of main line and branch line , also the cable specification .

△ Step 6 : if you just the mini Y connector without other connector , it 's ok . Just do as step3 , step4 , step5.

Splitter connector can connect with following connector

• M15 and M16 male female connector
• Current and Voltage : 10A / 300V
• Cable Specificaiton : 0.5mm2 - 1.5mm2 ( 16 - 20 AWG )
• Cable OD : φ 4.5 - φ 9.0mm
• There are also electrical connector with higher current or lower current , if you want more details , please contact me .

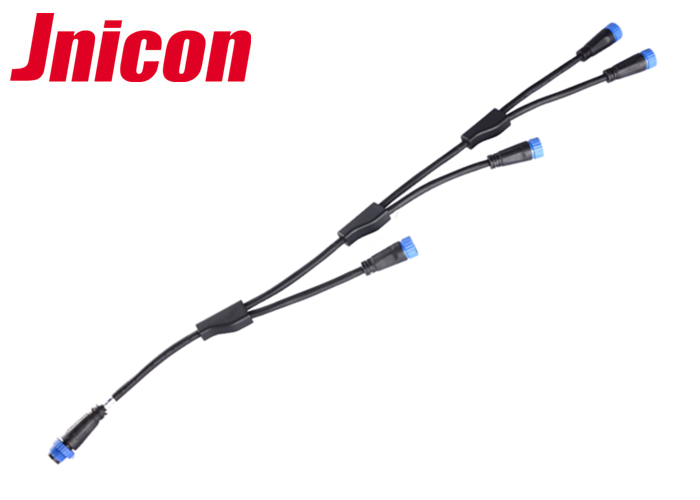

​Finished Product / 1 in 3 out Mini Y Connector
