3 Poles Male Female Gender Waterproof Connector Overmolded With
Cable IP67
Details For M19 waterproof cable connector
1. Color: black, yellow, blue available.
2. Push locking connection mode
3. Protection level: IP67
4. Connection method: soldering(welding),screw terminal
5. Assembly: assembly type, male and female connector.
6. Certification: UL,TUV,RoHS,CQC,CE
7. Warranty: 5 years
8. OEM accepted.

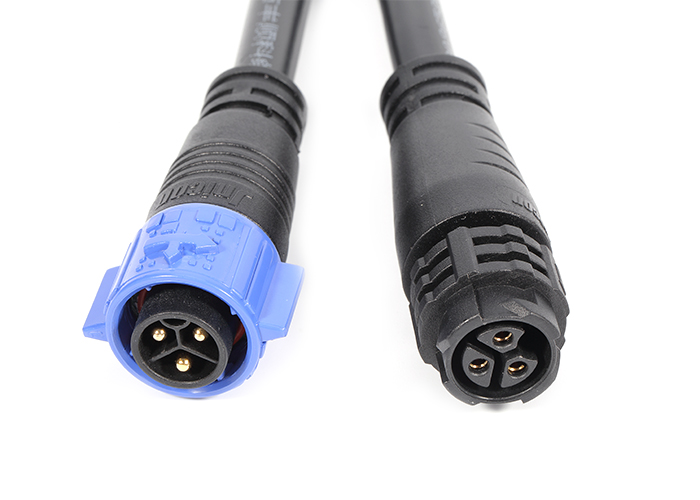

M19 overmolded cable connector is high performance waterproof
connector, good material and nice waterproof feature to let your
applications more safe and easy to install, it's a very popular
model in Europe, Amercian, South Asia area.
Technical information
| Specifications: |
| Connection way: | Push locking overmolded cable connector |
| Core number: | 3 pin,4 pin,5pin and multipin optional |

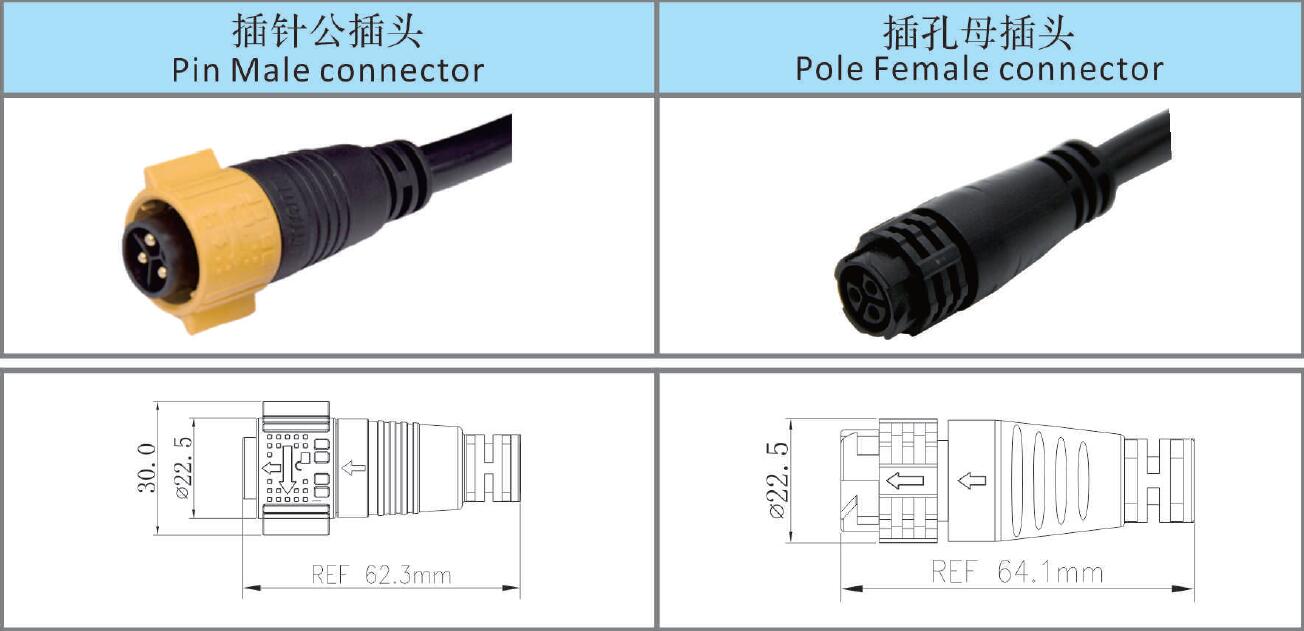

| Connector type : | Male female connector |
| Connector color: | Black, blue, yellow |
| Waterproof level: | IP67 |
| Cable specification: | 18AWG-12AWG |
| Cable diameter range: | 4.5mm-11mm |
| Rated current (A): | 20A |
| Operating voltage (AC.V.rms): | 500V |
| Withstand voltage (AC.V)1min: | 1500V |
| Contact resistance: | <5mΩ |
| Insulation resistance: | >500MΩ |
| Durability: | ≥3000 mating and unmating cycles |
| Temperature rating: | -40°C~105°C |
| Connecting mode: | Solder type |
| Flame-resistance: | UL94-V0 |
| Material: |
| Shell and insulated parts: | High performance engineering plastics |
| Contact pin: | Copper alloy(gold-plated) |
| Spring: | Stainless steel |
| Sealing: | Silica gel |
| Main characteristics: |
| Sealed against dust and fluid (IP67) |
| Vibration resistance, impact resistance, stretching resistance |
| Dust cover available |
Great suitable for industrial power connection, LED fixtures,
Telecommunication, Marin, grating, external wiring, CCTV, factory
automation control, other places need waterproof power extension
use.
Long service life to this outdoor waterproof cable connector, it
could be used for 5 years-10 years at least.
| Application industries: |
| Stage equipment | The smart grid | LED lighting |
| Medical equipment | Battery | Automation |
| Solar energy equipment | Ship equipment | Agriculture |
IP67 connector's benefits:
1. Easy connection, convenient install, DIY tools, and no need to
pinch-off cable electrical plastic sets, just unscrew the ends of
waterproof connector, connect the wire correctly: N for Neutral
wire, G for Ground wire, L for live wire.
2. With environmental protection material:high performance engineer
plastic is good for environmental protection.
