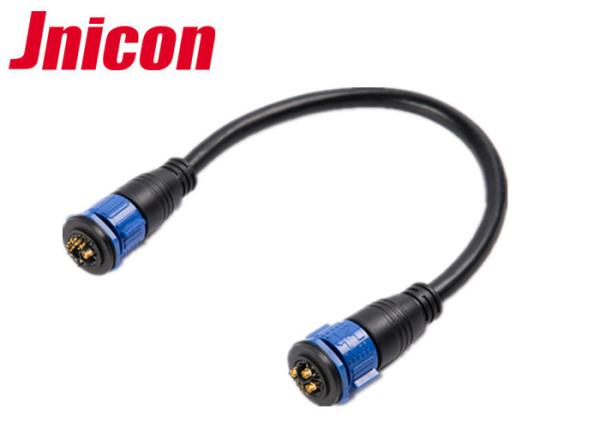

Multi-pin 3+9 Pin Waterproof Cable Welding Connector Data And Power IP67

Main features of Multi-pin 3+9 Pin Waterproof Cable Welding Connector:

• High current application safety and stable wire. 0.3mm~2.5mm² wire for 3+9 pin M25 series Push Locking waterproof male female connector.

• the current/ voltage of waterproof male female connector are 30A+5A/300V+60V. the withstanding voltage is 1500V AC.
•​ Operate temperature: -40°C~+105°C

• M25 series 2-22 pins are available and for varies industrial demands. male ,female and socket are available.

• The copper needles of the connector is adopted gold-plated technology,which can resist corrosion and suitable for high/low temperature, current transmission is more stable and safety.

The specifiction of 3+9 pins waterproof cable connector

More detail:

• Vibration resistance,impact resistance,stretching resistance.

• gold-plated contact, high performance of corrosion resistance and electrical conductivity effectively.

• OEM/ODM are accepted. cable length can customized.

Application

► M25 series connectors could be widely used in indoor & outdoor led lighting,electricl power connection,landscape lights,underwater lights, equipments etc, have high waterproof degree--IP67.

► It can effectively resist vibration and shock, and can prevent broken connection caused by pulling cables. It is absolutely reliable and convenient to plug in very limited space.

► Outdoor waterproof connector have IP67 waterproof protection rating, it works reliably in door, outdoor.

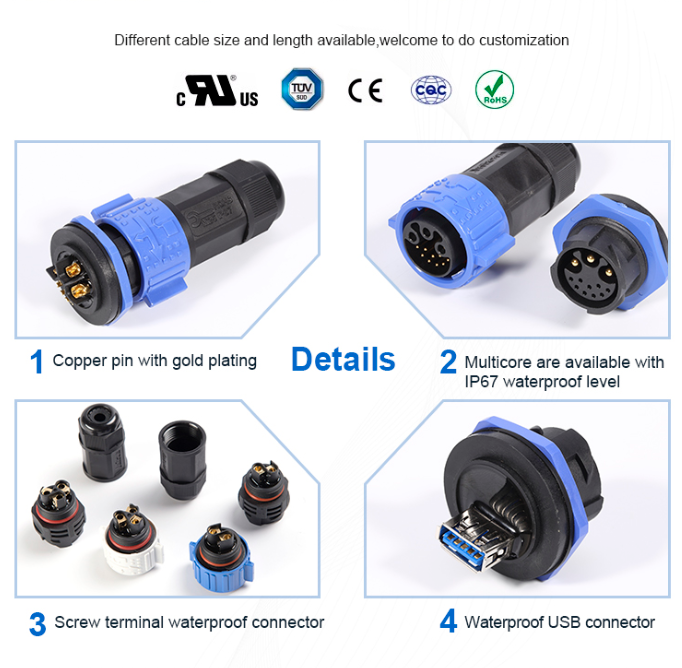

Product detail picture

Shenzhen Jnicon Technology Co.,Ltd. is specialized in waterproof connectors, power connector and signal connectors’ research and development, manufactures and sales, products up to 14 series more than 1000 varieties, widely applied in outdoor LED lighting, LED display, communication, new energy, automobile electronic applications etc.

Jnicon is located in Shenzhen China,own more than 200 people's team,4000 square meters factory,varites of test equipments of environment,electric and machinery 3 aspects.Jnicon does not only povide waterproof and high-current connectors, but also offer the service of customized connectors and cable assembly.

Jnicon has more than 50 items invention, utility model and design patents till 2017. In addition,all our connectors have UL,TUV,CCC,CE and Rohs certificate.

we are committed to providing responsive, cost effective, efficient and reliable logistic solution to our customers.

With years of experience in waterproof connector applications,Jnicon connectors are selling well in all cities and provinces around China, also popular to countries such as United State, United Kingdom, Germany, Netherlands, Spain, United Arab Emirates etc.

The best customer service is the cornerstone of operations here at Jnicon . We are also welcome OEM and ODM orders, welcome selecting a current product from our catalogue, or seeking assistance for your application, you can talk to our international sales team about source requirements.
