Jnicon M19 20A 3 Pin Stable Waterproof Panel Mount Connector Plug
Socket IP67
Main features of M19 series 3 Pin Waterproof panel mount connector
IP67:
• the current/ voltage of waterproof panel mount connector are
20A/300V.
• the withstanding voltage is 1500V AC.
• Operate temperature: -45°C~+85°C
• The waterproof level is IP67.
• M19 series 2-22 pins are available and for varies industrial
demands. male ,female and socket are available.
• High current application safety and stable wire. 1.5mm~2.5mm²
wire for 3 pin M19 series Push Locking waterproof panel mount
connector.
The specifiction of 3 pins waterproof male female connector
| SPECIFICATION |
| Designation | 3 pin waterproof panel mount connector IP67 |
| Model No. | 53-100311-01 |
| Item | Specification |
| 1. Electrical characteristics |
| 1A | Contact Resistance | 10mΩ max. |
|
| 1B | Insulation Resistance | 10MΩ min. |
|
| 1C | Withstand Voltage | 1500V AC There shall be no breakdown. |
|
| 1D | Rating | 20A 300V |
|
| 2. Mechanical |
| 2A | Mating/Unmating force | Mating & Unmating Force: 10~30N
Test data:22N,23N,25N,26N,23N |
|
| 2B | Life test | Mating & Unmating is 500 cycles |
|
| 3. Material |
| 3A | Contact material Plating | copper alloy with gold plating |
| 3B | Contact material | Brass (C3604) |
| 3C | Housing material | PA66(high performance engineer plastic) |
| 4. Environmental |
| 4A | Flammability | | UL 94V-0 |
| 4B | Operation temperature range: | -30℃~+80℃ |
| 4C | Preservative temperature range: | -40℃~+85℃ |
More detail of 3 pin waterproof panel mount connector:
• The copper needles of the connector is adopted gold-plated
technology,which can resist corrosion and suitable for high/low
temperature, current transmission is more stable and safety.
• Vibration resistance,impact resistance,stretching resistance.
• gold-plated contact, high performance of corrosion resistance and
electrical conductivity effectively.
• OEM/ODM are accepted. cable length can customized.
Application
► M19 series connectors could be widely used in indoor & outdoor
led lighting,electricl power connection,landscape lights,underwater
lights, equipments etc, have high waterproof degree--IP67.
► It can effectively resist vibration and shock, and can prevent
broken connection caused by pulling cables. It is absolutely
reliable and convenient to plug in very limited space.
► Outdoor waterproof connector have IP67 waterproof protection
rating, it works reliably in door, outdoor.

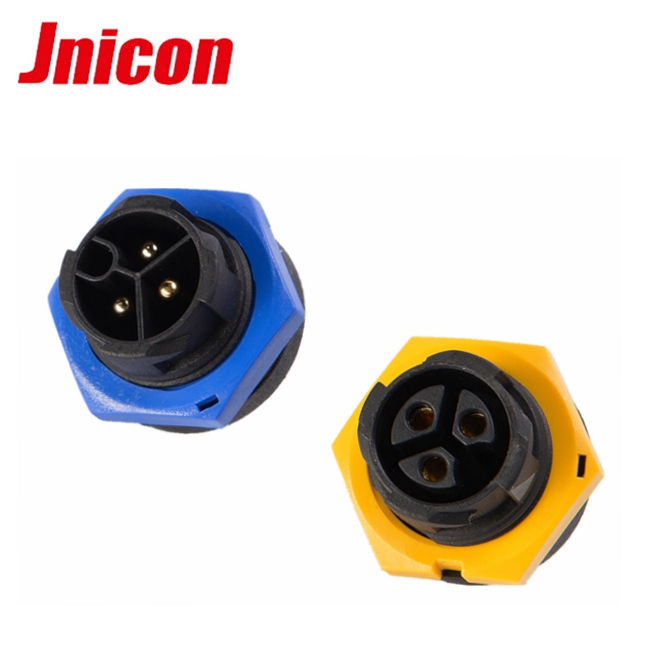

Product detail picture
