Gray IP44 Powercon Socket Waterproof LED Connectors , 3PIN Circualr
Connector
Gray IP44 Powercon Socket
Gray IP44 powercon plug connector wildly use in led screen ,
especially in indoor led screen due to its protection level - IP44
, not waterproof . About the demand of quantiy , usually it take 2
piece of powercon socke in one led screen box . You can make the
quantity according to you demand .
if you want to apply the powercon connector in outdoor envrionment
, the IP65 powercon socket connector is better . So you can just
have the right one according to your application environment .
People often call this waterproof LED connectors powercon connector
, when you just want the connector applied in indoor or outdoor
screen , just choose this connector directly . For powercon plug
connector , we also call it powecon male connector / aviation
waterproof connector .
Specification for 4 Part - Electrical characteristics , Mechanical
, Material and Environmental of Operating
| SPECIFICATION |
| Designation : | Gray IP44 Powercon Socket |
| Model No. : | 55-210351-04 |
| Item | Specification |
| 1. Electrical characteristics |
| 1A Contact Resistance | 3mΩ max. |
| 1B Insulation Resistance | 10MΩ min. |
| 1C Withstand Voltage | 2000V AC There shall be no breakdown. |
| 1D Rating | DC 50V 20A ( For each pin ) |
| 2. Mechanical |
| 2A Cable OD | 6.0mm~11.0mm |
| 2B Wise size | 3.6mm |
| 2C Wire size | 2.5mm2 |
| 2D Life test | Mating & Unmating 500 cycles |
| 3. Material |
| 3B Contact | Brass (C3604) |
| 3C Housing | PA66+30%GF V0 / 60G6F |
| 4. Environmental |
| 4A Flammability | UL 94V-0 |
| 4B Operation temperature range | -30℃~+80℃ |
| 4C Preservative temperature range | -40℃~+85℃ |
FAQ
(1) Q : I am interested in your connectors , do you have a price list ?
A : We do not have a price list of all the connectors . Because we
have so many models and the price keeps changing due to market
demand . if you need the price of any our connectors , please feel
free to contact me , we will provide the corresponding price .
(2) Q : Can you provide the samples ? Are the samples free ?
A : Yes , we can support 1 - 3 sets sample free one time for
quality test befor bulk order , but the shipping cost need to be
paid .
(3) Q : What about the delivery time ?
A : In general , about 3 working days after payment received .
(4) Q : Are you the factory ?
A : Yes , we are the factory located in Guangdong .
(5) Q : Can you make the customization product ?
A : Yeah , welcom to the customization product , just talk with me
about your requirement , like current voltage , application , cable
specification etc .

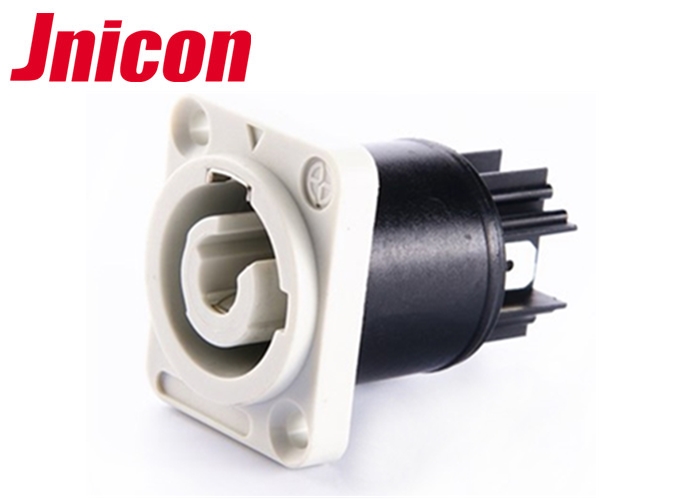

Gray IP44 Powercon Socet Connector

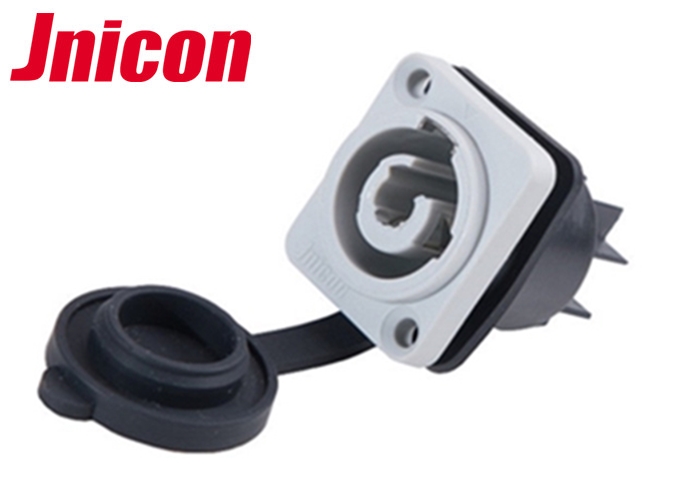

Gray IP65 Powercon Socet Connector with Waterproof Dust
Product Display
